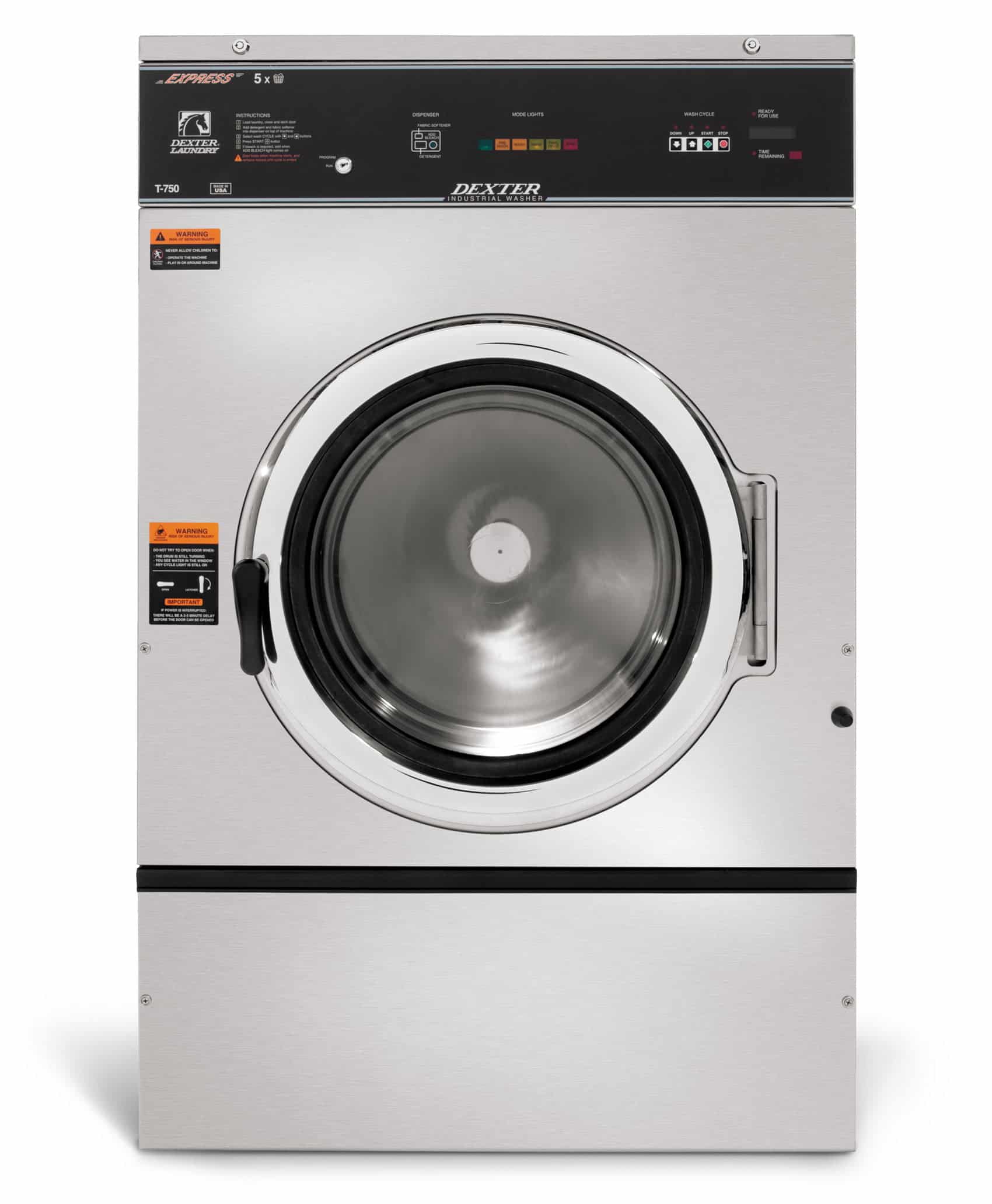

Dexter T-750 50lb Express Washer

Dexter 50lb 6 Cycle Washer, 200 G-force, 208-240/60/1 or 3

Specifications

SKU: WN0750XA Category:
Capacity Dry Weight Capacity – lb (kg) 50.00 (22.70)
  Cylinder Volume – cu ft (L) 6.50 (184.10)
Speed High Extract Speed – g (RPM) 200.00 (685.00)
  Motor Size – hp (kW) 3.00 (2.20)
Dimensions Cabinet Height – in (cm) 55.38 (140.70)
  Cabinet Width – in (cm) 34.38 (87.30)
  Cabinet Depth – in (cm) 32.88 (83.50)
  Door Opening – in (cm) 19.25 (48.90)
  Floor to Door Bottom – in (cm) 16.00 (40.60)
  Cylinder Diameter – in (cm) 30.00 (76.20)
  Cylinder Depth – in (cm) 16.00 (40.60)
Weight Net Weight – lb (kg) 925.00 (419.60)
Shipping Shipping Weight – lb (kg) 952.00 (431.80)
  Shipping Height – in (cm) 61.50 (156.20)
  Shipping Width – in (cm) 36.00 (91.40)
  Shipping Depth – in (cm) 38.00 (96.50)
Water Water Inlet Size – in (mm) 0.75 (19.00)
  Pressure (min/max) – psi (kPa) 30-120 (207-827)
  Flow Rate – gal/min (L/min) 9.00 (34.00)
  Drain Diameter (O.D.) – in (cm) 3.00 (7.60)
  Floor to Center of Drain – in (cm) 6.63 (16.80)
Electrical Model Volts / Hz / Phase / Wiring Circuit Breaker Amps / Running Amps / Wire Size
  -12 208-240 / 60 / 1 / 2 wire ground 20/ 8.4 / #12
    208-240 / 60 / 3 / 3 wire ground
  -39 230 / 50 / 1 / 2 wire ground 20 / 8.4 / 3.5 mm2
  -59 230 / 50 / 1 / 2 wire ground 20 / 8.4 / 3.5 mm2
Installation Min. Clearance Between Machines – in (cm) 0.50 (1.30)
  Min. Clearance Behind Machines – in (cm) 24.00 (61.00)
  Min. Concrete Thickness – in (cm) 8.00 (20.30)
Options Controls 6-Cycle
  Other Features & Options
