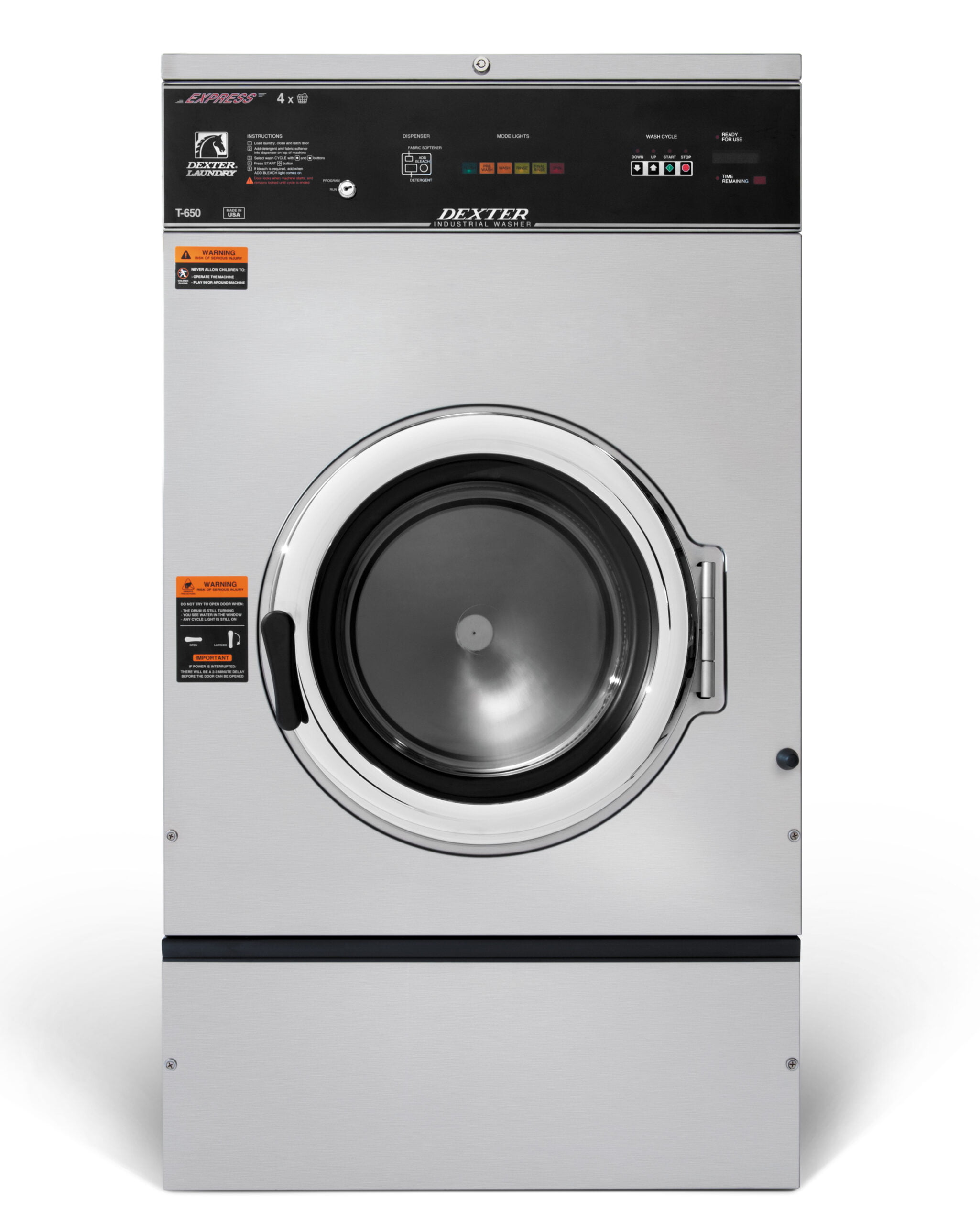

Dexter T-650 40lb Express Washer

Dexter 40lb 6 Cycle Washer, 200 G-force, 208-240/60/1 or 3

Specifications

SKU: WN0650XA Category:
Capacity Dry Weight Capacity – lb (kg) 40.00 (18.10)
  Cylinder Volume – cu ft (L) 6.00 (170.00)
Speed High Extract Speed – g (RPM) 200.00 (750.00)
  Motor Size – hp (kW) 2.00 (1.50)
Dimensions Cabinet Height – in (cm) 53.00 (134.60)
  Cabinet Width – in (cm) 29.88 (75.90)
  Cabinet Depth – in (cm) 38.13 (96.80)
  Door Opening – in (cm) 15.25 (38.70)
  Floor to Door Bottom – in (cm) 16.25 (41.30)
  Cylinder Diameter – in (cm) 25.00 (63.50)
  Cylinder Depth – in (cm) 21.13 (53.70)
Weight Net Weight – lb (kg) 744.00 (337.50)
Shipping Shipping Weight – lb (kg) 766.00 (347.50)
  Shipping Height – in (cm) 58.75 (149.20)
  Shipping Width – in (cm) 31.50 (80.00)
  Shipping Depth – in (cm) 43.75 (111.10)
Water Water Inlet Size – in (mm) 0.75 (19.00)
  Pressure (min/max) – psi (kPa) 30-120 (207-827)
  Flow Rate – gal/min (L/min) 9.00 (34.00)
  Drain Diameter (O.D.) – in (cm) 3.00 (7.60)
  Floor to Center of Drain – in (cm) 6.88 (17.50)
Electrical Model Volts / Hz / Phase / Wiring Circuit Breaker Amps / Running Amps / Wire Size
  -12 208-240 / 60 / 1 / 2 wire ground 15 / 6.2 / #12
    208-240 / 60 / 3 / 3 wire ground
  -39 230 / 50 / 1 / 2 wire ground 15 / 6.2 / 3.5 mm2
  -59 230 / 50 / 1 / 2 wire ground 15 / 6.2 / 3.5 mm2
Installation Min. Clearance Between Machines – in (cm) 0.50 (1.30)
  Min. Clearance Behind Machines – in (cm) 24.00 (61.00)
  Min. Concrete Thickness – in (cm) 8.00 (20.30)
Options Controls 6-Cycle
  Other Features & Options
