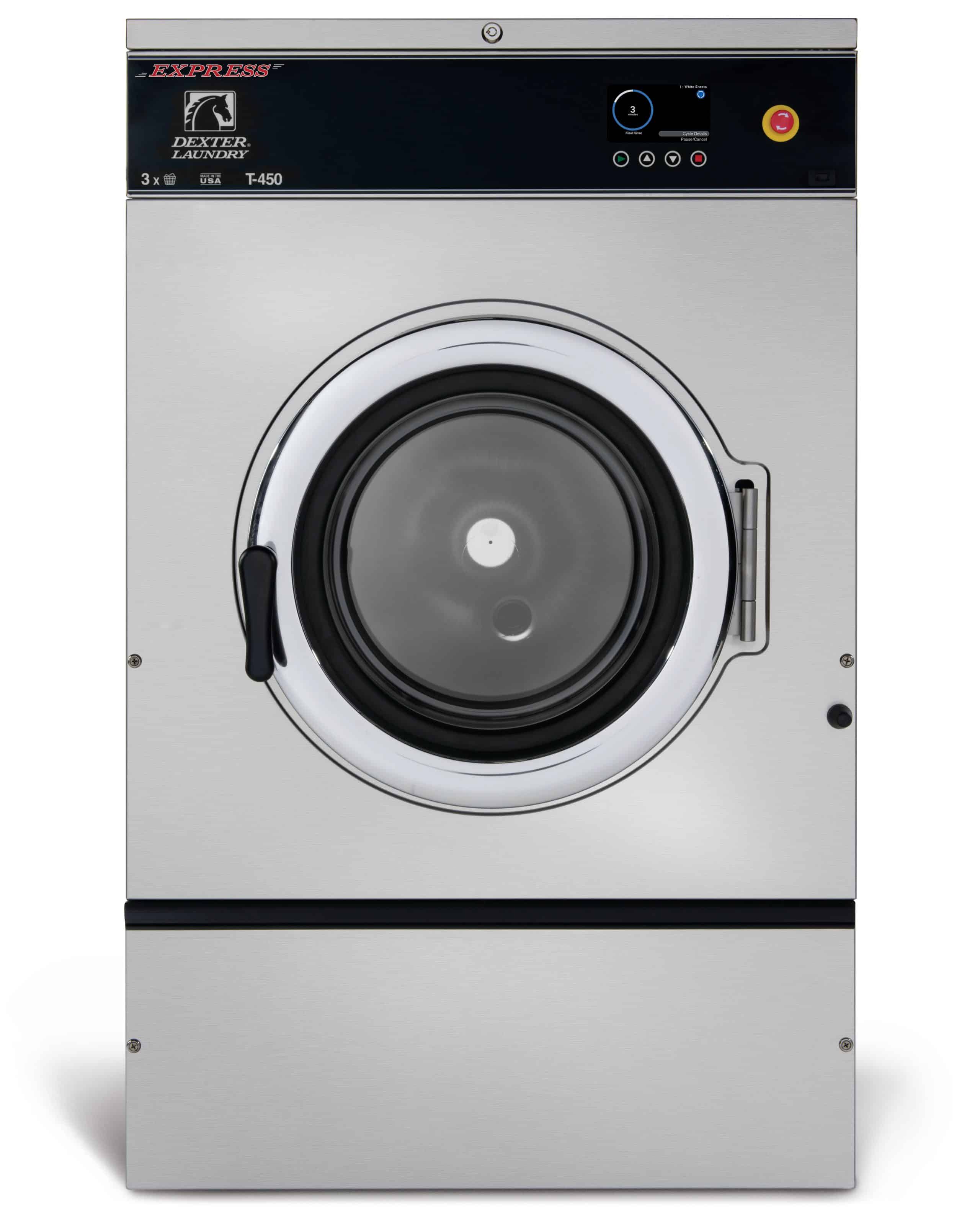

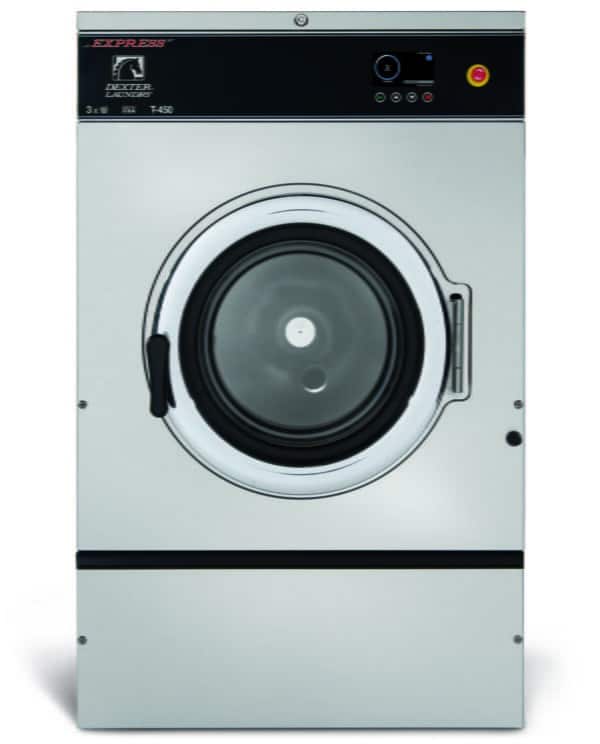

Dexter T-450 O-Series 30lb Washer

Dexter 30lb O-Series Washer, 200 G-force, 208-240/60/1 or 3

Specifications

SKU: WN0450XB Category:
Capacity Dry Weight Capacity – lb (kg) 30.00 (13.60)
Cylinder Volume – cu ft (L)   3.80 (107.60)
Speed Maximum Extract Speed – g (RPM) 200.00 (750.00)
Motor Size – hp (kW)   2.00 (1.50)
Dimensions Cabinet Height – in (cm) 48.19 (122.40)
Cabinet Width – in (cm)   29.88 (75.90)
Cabinet Depth – in (cm)   28.25 (71.80)
Door Opening – in (cm)   15.25 (38.70)
Floor to Door Bottom – in (cm)   16.25 (41.30)
Cylinder Diameter – in (cm)   25.00 (63.50)
Cylinder Depth – in (cm)   13.38 (34.00)
Weight Net Weight – lb (kg) 526.00 (238.60)
Shipping Shipping Weight – lb (kg) 544.00 (246.80)
Shipping Height – in (cm)   53.25 (135.30)
Shipping Width – in (cm)   31.50 (80.00)
Shipping Depth – in (cm)   33.50 (85.10)
Water Water Inlet Size – in (mm) 44259.00 (19.00)
  Pressure (min/max) – psi (kPa) 30-120 (207-827)
  Flow Rate – gal/min (L/min) 9.00 (34.00)
  Drain Diameter (O.D.) – in (cm) 3.00 (7.60)
  Floor to Center of Drain – in (cm) 5.00 (12.70)
Electrical Model Volts / Hz / Phase / Wiring Circuit Breaker Amps / Running Amps / Wire Size
  (12.00) 208-240 / 60 / 1 / 2 wire ground 15 / 6.2 / #12
  208-240 / 60 / 3 / 3 wire ground
  (13.00) 208-240 / 60 / 3 / 3 wire ground
  (39.00) 230 / 50 / 1 / 2 wire ground 15 / 6.2 / 3.5 mm2
  (68.00) 400 / 50 / 3 / 4 wire ground
Installation Min. Clearance Between Machines – in (cm) 0.50 (1.30)
  Min. Clearance Behind Machines – in (cm) 24.00 (61.00)
  Min. Concrete Thickness – in (cm) 6.00 (15.20)
Options Controls O-Series
  Other Features & Options
