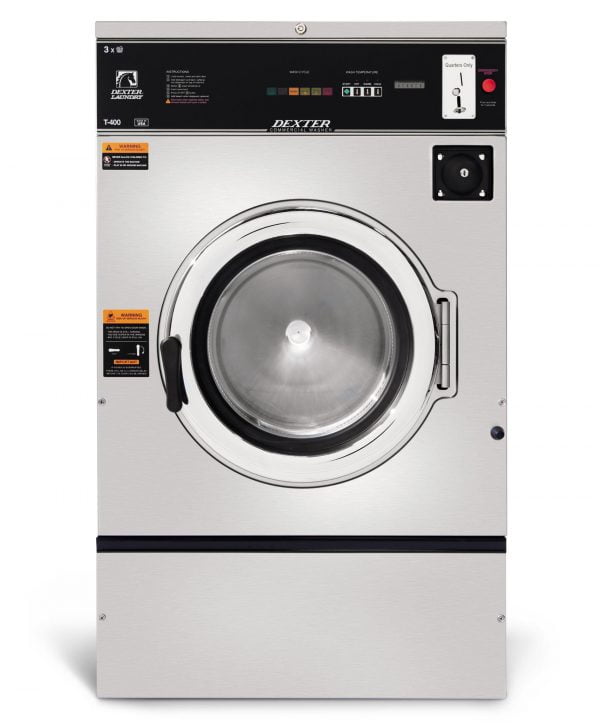

Dexter T-400 30lb Vended Washer

Dexter T-400 30lb Vended Washer

Specifications

SKU: WC0400XB Categories: ,
Capacity Dry Weight Capacity – lb (kg)           30 (13.6)
  Cylinder Volume – cu ft (L)           4 (113.3)
Speed High Extract Speed – g (RPM)           100 (532)
  Motor Size – hp (kW)           2 (1.5)
Dimensions Cabinet Height – in (cm)           48 3/16 (122.4)
  Cabinet Width – in (cm)           29 7/8 (75.9)
  Cabinet Depth – in (cm)           27 3/8 (69.5)
  Door Opening – in (cm)           15 1/4 (38.7)
  Floor to Door Bottom – in (cm)           16 1/4 (41.3)
  Cylinder Diameter – in (cm)           25 (63.5)
  Cylinder Depth – in (cm)           14 1/8 (35.9)
Weight Net Weight – lbs (kg)           432 (196)
Shipping Shipping Weight – lbs (kg)           450 (204.1)
  Shipping Height – in (cm)           53 1/4 (135.3)
  Shipping Width – in (cm)           31 1/2 (80)
  Shipping Depth – in (cm)           33 1/2 (85.1)
Water Water Inlet Size – in (mm)           3/4 (19)
  Pressure (min/max) – psi (kPa)           30-120 (207-827)
  Flow Rate Per Valve – gal/min (L/min)           9 (34)
  Approx. Water Usage (per cycle) – gal (L)           23.5 (89)
  Drain Diameter (O.D.) – in (cm)           3 (7.6)
  Floor to Center of Drain – in (cm)           4 11/16 (11.9)
Electrical Model Volts / Hz / Phase / Wiring         Circuit Breaker / Running Amps / Wire Size
  -10 120 / 60 / 1 / 2 wire ground
  -12 208-240 / 60 / 1 / 2 wire ground         15 / 6.2 / #12
    208-240 / 60 / 3 / 3 wire ground
  -39 230 / 50 / 1 / 2 wire ground         15 / 6.2 / 3.5 mm2
  -59 230 / 50 / 1 / 2 wire ground         15 / 6.2 / 3.5 mm2
Installation Min. Clearance Between Machines – in (cm)           1/2 (1.3)
  Min. Clearance Behind Machines – in (cm)           24 (61)
  Min. Concrete Thickness – in (cm)           6 (15.2)
