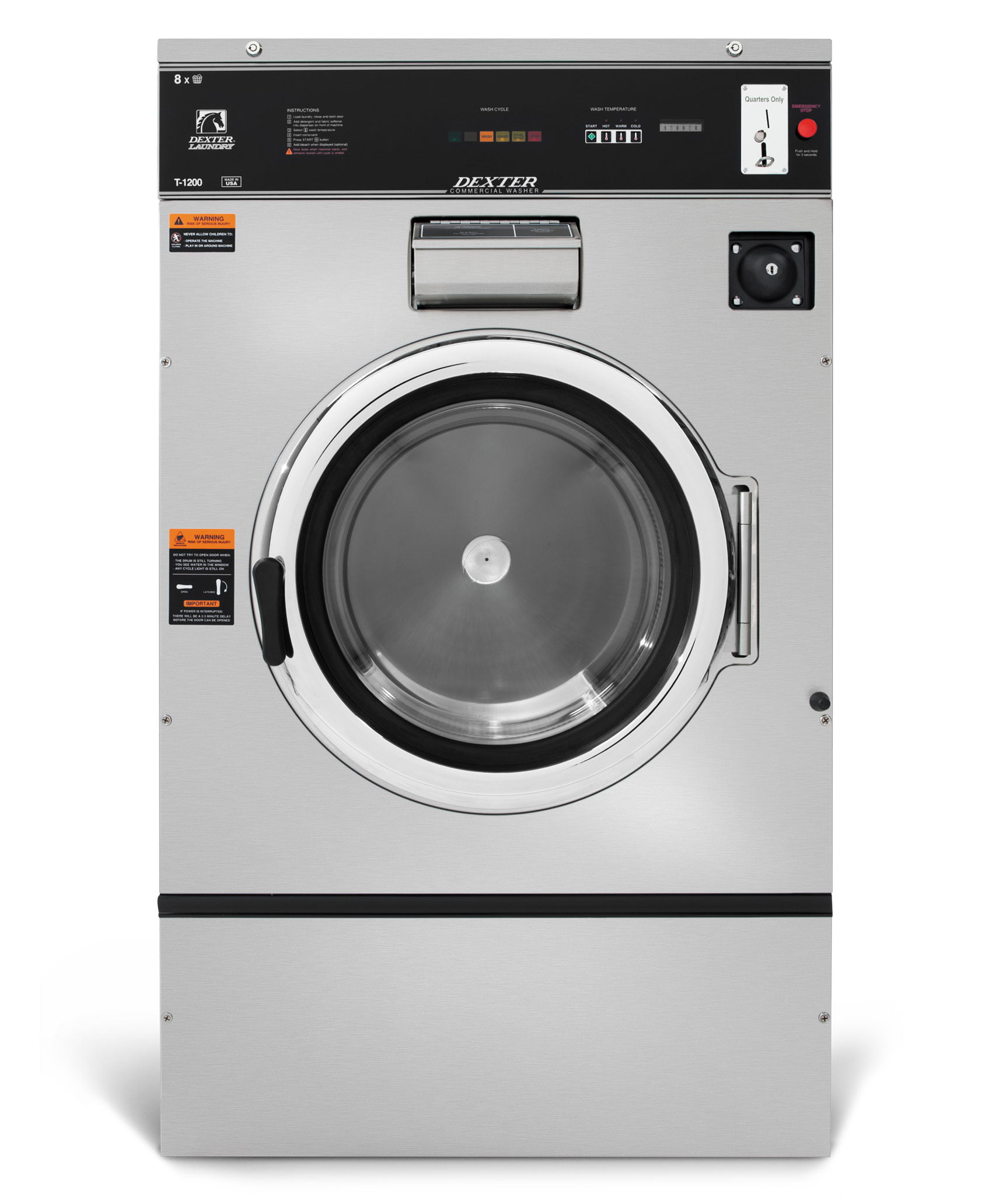

Dexter T-1200 80lb Vended Washer

Dexter T-1200 80lb Vended Washer

Specifications

SKU: WC1200XB Categories: ,
Capacity Dry Weight Capacity – lb (kg)           80 (36.3)
  Cylinder Volume – cu ft (L)           11.5 (325.6)
Speed High Extract Speed – g (RPM)           100 (485)
  Motor Size – hp (kW)           3 (2.2)
Dimensions Cabinet Height – in (cm)           57 7/8 (147)
  Cabinet Width – in (cm)           34 3/8 (87.3)
  Cabinet Depth – in (cm)           45 3/8 (115.3)
  Door Opening – in (cm)           19 1/4 (48.9)
  Floor to Door Bottom – in (cm)           18 1/2 (47)
  Cylinder Diameter – in (cm)           30 (76.2)
  Cylinder Depth – in (cm)           28 (71.1)
Weight Net Weight – lbs (kg)           1022 (463.6)
Shipping Shipping Weight – lbs (kg)           1063 (482.2)
  Shipping Height – in (cm)           63 3/4 (161.9)
  Shipping Width – in (cm)           36 (91.4)
  Shipping Depth – in (cm)           52 3/16 (132.6)
Water Water Inlet Size – in (mm)           3/4 (19)
  Pressure (min/max) – psi (kPa)           30-120 (207-827)
  Flow Rate Per Valve – gal/min (L/min)           9 & 12 (34 & 45)
  Approx. Water Usage (per cycle) – gal (L)           67 (253.6)
  Drain Diameter (O.D.) – in (cm)           3 (7.6)
  Floor to Center of Drain – in (cm)           8 5/8 (21.8)
Electrical Model Volts / Hz / Phase / Wiring         Circuit Breaker / Running Amps / Wire Size
  -10 120 / 60 / 1 / 2 wire ground
  -12 208-240 / 60 / 1 / 2 wire ground         20 / 8.4 / #12
    208-240 / 60 / 3 / 3 wire ground
  -39 230 / 50 / 1 / 2 wire ground         20 / 8.4 / 3.5 mm2
  -59 230 / 50 / 1 / 2 wire ground
Installation Min. Clearance Between Machines – in (cm)           1/2 (1.3)
  Min. Clearance Behind Machines – in (cm)           24 (61)
  Min. Concrete Thickness – in (cm)           8 (20.3)
