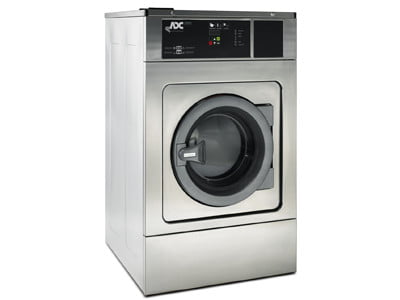

ADC EWS40M2 Washer

ADC EWS40M2 Washer

Specifications

Category:
DRUM
Load Capacity (lb/kg)40 / 18
Drum Volume (cu. ft./liter)6.4 / 181
Drum Diameter (in/mm)27 ½ / 700
Drum Depth (in/mm)18 ½ / 470
DIMENSIONS
Width (in/mm)31 / 788
Depth (cabinet) (in/mm)31 ½ / 800
Depth (overall) (in/mm)35 1/8 / 892
Height (in/mm)51 ½ / 1307
Weight (lb/kg)591 / 268
DIMENSIONS WITH PACKAGING
Crated Width (in/mm)34 ¾ / 884
Crated Depth (in/mm)41 ¼ / 1048
Crated Height (in/mm)60 ¾ / 1543
Crated Weight (lb/kg)647 / 294
DOOR
Height to Bottom of Door15 5/8 / 395
Door Opening Diameter (in/mm)14 5/8 / 373
POWER
Voltage / Phase (50hz or 60hz)208–240 / 1, 3PH
Full Load Current / Breaker (amps)—1PH6.8/15
Full Load Current / Breaker (amps)—3PH6.8/15
CONNECTIONS
Water Inlet (GHT/BSP)¾” / ¾”
Steam Inlet (BSP)½”
Drain (in/mm)3 / 76
CYLINDER SPEED
Washing Speed (rpm)50
Spinning Speed (rpm)507
G-Force100
WATER
Average Usage (gallons)*36.8
