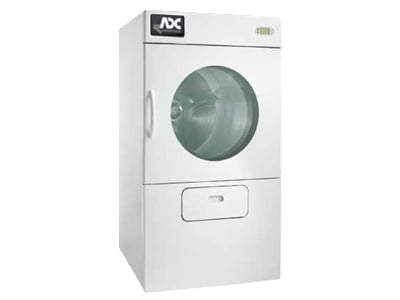

ADC ES50 Dryer

ADC ES50 Dryer

Specifications

Category:
Tumbler Capacity (Dry Weight)50 lbs. (22.68 kg)
Tumbler Diameter37” (93.98 cm)
Tumbler Depth25-3/4” (65.41 cm)
Tumbler Volume16.02 cu ft (453.64 L)
Tumbler/Drive Motor3/4 hp (0.56 kW)
Blower/Fan Motor1/2 hp (0.37 kW)
Door Opening (Diameter)27-3/8” (69.53 cm)
Door Sill Height31-1/4” (79.375 cm)
S.A.F.E. Water Connection
North America Outside North America
3/4” F.N.P.T. (11.5 N.H.)
3/4” B.S.P.T.
Dryers per 20’/40’ Container10 / 22
Dryers per 48’/53’ Truck28
GasVoltage Available120-240V    1ø    2,3w    50/60 Hz
Approximate Net Weight610 lb (276.69 kg)
Approximate Shipping Weight640 lb (290.30 kg)
Airflow                                60 Hz
50 Hz
600 cfm (17.00 cmm)
600 cfm (14.16 cmm)
Heat Input110,000 Btu/hr (27,720 kcal/hr)
Exhaust Connection (Diameter)8” (20.32 cm)
Compressed Air ConnectionN / A
Compressed Air VolumeN / A
Inlet Pipe Connection1/2” M.N.P.T.
1/2” F.B.S.P.T. (CE and Australia Only)
ElectricVoltage Available200-416V    1,3ø    3,4w    50/60 Hz
Approximate Net Weight610 lb (276.69 kg)
Approximate Shipping Weight640 lb (290.30 kg)
Airflow                                60 Hz
50 Hz
600 cfm (17.00 cmm)
500 cfm (14.16 cmm)
Exhaust Connection (Diameter)8” (20.32 cm)
Compressed Air ConnectionN / A
Compressed Air VolumeN / A
Oven Size
kWBtu/hrkcal/hr
13.445,86911,559
14.750,13612,634
14.850,54512,737
16.054,60613,761
22.075,08418,920
SteamVoltage Available120-240V    1ø    2,3w    50/60 Hz
Approximate Net Weight610 lb (276.69 kg)
Approximate Shipping Weight640 lb (290.30 kg)
Airflow                                60 Hz
50 Hz
600 cfm (17.00 cmm)
500 cfm (14.16 cmm)
Steam Consumption107 lb/hr (48.53 kg/hr)
Operating Steam Pressure150 psi max (10.34 bar)
Exhaust Connection (Diameter)8” (20.32 cm)
Compressed Air ConnectionN / A
Compressed Air VolumeN / A
Boiler HP (Normal Load)4 Bhp
Standard Supply Connections3/4” F.N.P.T.
Standard Return Connections3/4” F.N.P.T.
