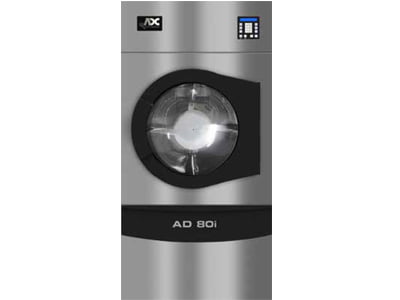

ADC AD80i Dryer

ADC AD80i Dryer

Specifications

Category:
Maximum Capacity (dry weight)80 lb36.28 kg
Tumbler Diameter37″93.98 cm
Tumbler Depth35-7/16″90.01 cm
Tumbler Volume22.05 cu ft624.39 L
Tumbler/Drive Motor1 hp0.74 kW
Blower/Fan Motor*3/4 hp0.56 kW
Cabinet Width39″99.06 cm
Cabinet Depth52-3/8″133.03 cm
Cabinet Height77-7/8″197.80 cm
Door Opening (diameter)31-3/8″79.69 cm
Door Sill Height29″73.66 cm
Water Connection3/4″-11.5 NH (North America)
3/4″ B.S.P.T. (Outside North America)
Dryers per 20’/40′ Container8 / 16
Dryers per 48’/53′ Container22 / 26
GasVoltage Available120-480V   1,3ø   2,3   50/60 Hz
Approximate Net Weight700 lb317.52 kg
Approximate Shipping Weight720 lb326.59 kg
50 Hz
60 Hz
880 cfm
920 cfm
24.91 cmm
26.05 cmm
Heat Input135,000 Btu/hr34,019 kcal/hr
Exhaust Connection (diameter)8″20.32 cm
Inlet Pipe Connection1/2″ N.P.T. (Male)
1/2″ B.S.P.T. (Female) (CE and Australia Only)
ElectricVoltage Available280-480V   1,3ø   2,3,4w   50/60 Hz
Approximate Net Weight710 lb322.05 kg
Approximate Shipping Weight730 lb331.12 kg
50 Hz
60 Hz
770 cfm
740 cfm
21.80 cmm
20.95 cmm
Exhaust Connection (diameter)8″20.32 cm
Oven SizekWBtu/hrkcal/hr
2275,06718,917
20.469,60817,541
18.563,12515,907
SteamVoltage Available120-480V   1,3ø   2,3   50/60 Hz
Approximate Net Weight830 lb376.48 kg
Approximate Shipping Weight865 lb392.36 kg
50 Hz
60 Hz
854 cfm
1,025 cfm
24.18 cmm
29.02 cmm
Steam Consumption (Max)140 lb/hr63.50 kg/hr
Operating Steam Pressure150 psi10.34 bar
Exhaust Connection (Diameter)8″20.32 cm
Boiler Horsepower (Normal Load)3.6 Bhp
Supply Connection(1) 3/4″ N.P.T. (Female)
Return Connection(2) 3/4″ N.P.T. (Male)
