ADC AD50V Dryer

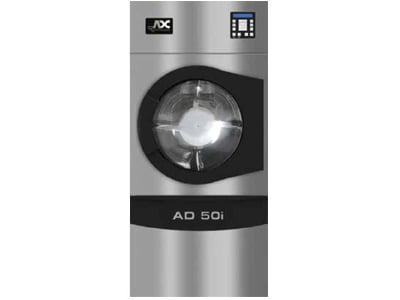

ADC AD50i Dryer

Specifications

Category:
Maximum Capacity (dry weight)50 lb22.67 kg
Tumbler Diameter32-3/4″83.18 cm
Tumbler Depth37-1/2″95.25 cm
Tumbler Volume18.3 cu ft518.19 L
Tumbler/Drive Motor1 hp0.75 kW
Blower/Fan Motor*3/4 hp0.56 kW
Cabinet Width34-1/2″87.63 cm
Cabinet Depth49-3/8″125.41 cm
Cabinet Height73-5/8″187.1 cm
Door Opening (diameter)27″68.58 cm
Door Sill Height29-1/8″74 cm
Water Connection3/4″-11.5 NH (North America)
3/4″ B.S.P.T. (Outside North America)
Dryers per 20’/40′ Container10 / 20
Dryers per 48’/53′ Container25 / 28
GasVoltage Available120-480V   1,3ø   2,3   50/60 Hz
Approximate Net Weight655 lb297.10 kg
Approximate Shipping Weight710 lb322.05 kg
50 Hz
60 Hz
810 cfm
850 cfm
22.93 cmm
24.06 cmm
Heat Input125,000 Btu/hr31,500 kcal/hr
Exhaust Connection (diameter)8″20.32 cm
Inlet Pipe Connection1/2” N.P.T. (Male)
1/2″ B.S.P.T. (Female) (CE and Australia Only)
ElectricVoltage Available208-480V   1,3ø   2,3,4w   50/60 Hz
Approximate Net Weight660 lb299.37 kg
Approximate Shipping Weight715 lb324.31 kg
50 Hz
60 Hz
714 cfm
746 cfm
20.21 cmm
21.12 cmm
Exhaust Connection (diameter)8″20.32 cm
Oven SizekWBTUKcal
18.56312415907
20.46960717540
227506718916
SteamVoltage Available120-480V   1,3ø   2,3   50/60 Hz
Approximate Net Weight685 lb310.71 kg
Approximate Shipping Weight745 lb337.92 kg
50 Hz
60 Hz
767 cfm
920 cfm
21.71 cmm
26.05 cmm
Steam Consumption (Max)105 lb/hr47.62 kg/hr
Operating Steam Pressure150 psi max10.34 bar
Exhaust Connection (Diameter)8″20.32 cm
Boiler Horsepower (Normal Load)2.7 Bhp
Supply Connection(1) 3/4″ N.P.T. (Male)
Return Connection(1) 3/4″ N.P.T. (Male)
