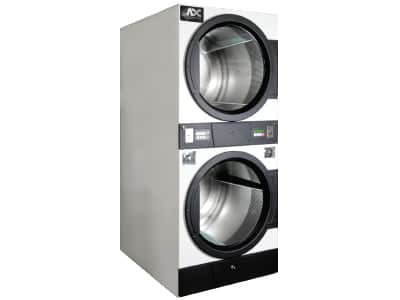

ADC AD45x2R Dryer

ADC AD45x2R Dryer

Specifications

Category:
Tumbler Capacity (dry weight per pocket)45 lbs. (20.4 kg)
Tumbler Diameter32-3/4″ (83.2 cm)
Tumbler Depth30″ (76.2 cm)
Tumbler Volume (per pocket)14.6 cu ft (413.4 L)
Tumbler/Drive Motor (per pocket)1/3 hp (0.25 kW)
Blower/Fan Motor (per pocket)1/2 hp (.37 kW)
Door Opening (Diameter)27″ (68.6 cm)
Door Sill Height                        top pocket bottom pocket50.4″ / 10.3″
(128 cm / 26.2 cm)
Dryers per 20’/40′ Container10 / 21
Dryers per 48’/53′ Truck25 / 28
Width34-1/4″ (87 cm)
Depth47-7/8″ (121.6 cm)
Height81″ (205.7 cm)
(per pocket)                                 60 Hz525 cfm (14.9 cmm)
Exhaust Connection10″ (25.4 cm)
GAS MODEL:              Voltage Available Approx. Net Wt. Approx. Ship Wt. Heat Input (per pocket)
Inlet Pipe Connection (per dryer)
120v-240v 1ΓΈ  2w 50/60 Hz 640 lbs (290 kg)
700 lbs (318 kg)
94,000 btu/hr (23.688 kcal/hr) 1/2″ M.N.P.T.
