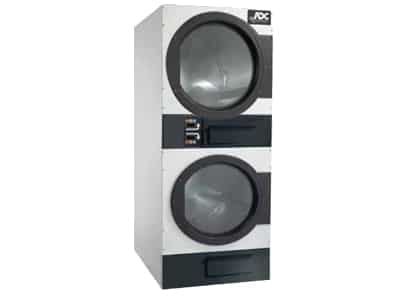

ADC AD444 Dryer

ADC AD444 Dryer

Specifications

Category:
Tumbler Capacity (dry weight)45 lbs. (20.41 kg) x 2
Tumbler Diameter32-3/4  (83.19 cm)
Tumbler Depth30″ (76.20 cm)
Tumbler Volume14.6 cu ft (413.43 L)
Tumbler/Drive Motor3/4 hp (0.56 kW)
Blower/Fan MotorN/A
Door Opening (Diameter)27  (68.58 cm)
Door Sill Height                       top pocket bottom pocket 50-1/4  (127.64 cm)
10-1/4  (26.04 cm)
Dryers per 20’/40′ Container8 / 16
Dryers per 48’/53′ Truck25 / 27
Width34-5/16  (87.15 cm)
Depth53-3/16  (135.02 cm)
Height80-15/16  (205.6 cm)
60 Hz
50 Hz
530 cfm (15 cmm)
442 cfm (12.52 cmm)
Exhaust Connection 8  (20.32 cm) Standard x2
10  (25.4 cm) Optional x1
GAS MODEL:
Voltage Available Approx. Net Wt. Approx. Ship Wt.
Heat Input (per pocket) Inlet Pipe Connection (per pocket)
120-240v 1ΓΈ, 2w
905 lbs (410.5 kg)
940 lbs (426.4 kg)
106,000 btu/hr (26,712 kcal/hr)
1/2  F.N.P.T.
