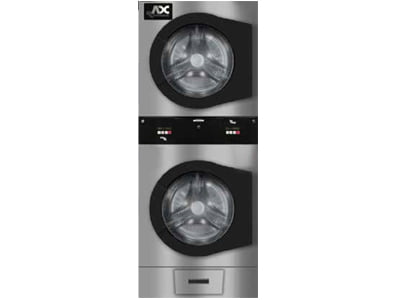

ADC AD30x2Ri Dryer

ADC AD30x2Ri Dryer

Specifications

Category:
Maximum Capacity (dry weight) Per Pocket30 lb13.6 kg
Tumbler Diameter30″76.2 cm
Tumbler Depth27″68.5 cm
Tumbler Volume Per Pocket11 cu ft311.5 L
Tumbler/Drive Motor Per Pocket1/4 hp0.19 kW
Blower/Fan Motor Per Pocket1/2 hp0.37 kW
Door Opening (diameter)21-1/2″54.6 cm
Door Sill Height Top Pocket / Bottom Pocket51-3/4″ / 13-1/8″131.4 cm / 33.3 cm
Dryers Per 20’/40′ Container14/ 28
Dryers Per 48’/53′ Truck36 / 42
Gas ModelVoltage Available120-240V1ΓΈ2w50/60 Hz
Approximate Net Weight520 lb236 kg
Approximate Shipping Weight550 lb249 kg
Per Pocket60 Hz
50 Hz
450 cfm12.74 cmm
375 cfm10.6 cmm
Heat Input Per Pocket72,000 Btu/hr18,144 kcal/hr
Exhaust Connection (diameter) Per Dryer8″20.3 cm
Inlet Pipe Connection Per Dryer1/2″ M.N.P.T.
1/2″ B.S.P.T. (CE and Australia Only)
