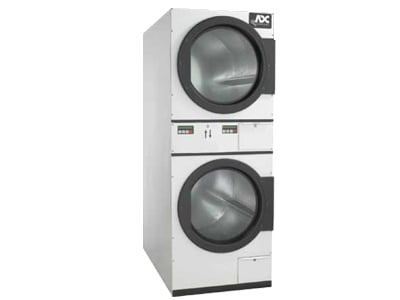

ADC AD236 Dryer

ADC AD236 Dryer

Specifications

Category:
Maximum Capacity (dry weight) per pocket30 lb13.6 kg
Tumbler Diameter27-1/4″69.22 cm
Tumbler Depth30″76.2 cm
Tumbler Volume per pocket10.1 cu ft286 L
Tumbler/Drive Motor per pocket1/2 hp0.373 kW
Blower/Fan Motor per pocket1/2 hp0.373 kW
Door Opening (diameter)21-1/2″54.61 cm
Door Sill Height top pocket / bottom pocket51-1/4″ / 13-1/2″130.2 cm / 34.3 cm
Water ConnectionN / A
Dryers per 20’/40′ Container11 / 22
Dryers per 48’/53′ Container30 / 33
GasVoltage Available120-480V1,3ΓΈ2,350/60 Hz
Approximate Net Weight850 lb385.5 kg
Approximate Shipping Weight900 lb408.2 kg
per pocket60 Hz
50 Hz
400 cfm
333 cfm
11.33 cmm
9.44 cmm
Heat Input per pocket80,000 Btu/hr20,160 kcal/hr
Exhaust Connection (diameter)8″20.32 cm
Compressed Air ConnectionN / A
Compressed Air VolumeN / A
Inlet Pipe Connection3/4″ M.N.P.T.
ElectricVoltage AvailableN / A
Approximate Net Weight
Approximate Shipping Weight
per pocket
Exhaust Connection (diameter) per pocket
Compressed Air Connection
Compressed Air Volume
Oven Size
kWBTU/HrKcal/Hr
SteamVoltage AvailableN / A
Approximate Net Weight
Approximate Shipping Weight
per pocket
Steam Consumption per pocket
Operating Steam Pressure
Exhaust Connection (Diameter) per pocket
Compressed Air Connection
Compressed Air Volume
Boiler Horsepower (Normal Load) per pocket
Supply Connection per pocket
Return Connection per pocket
